Kennametal

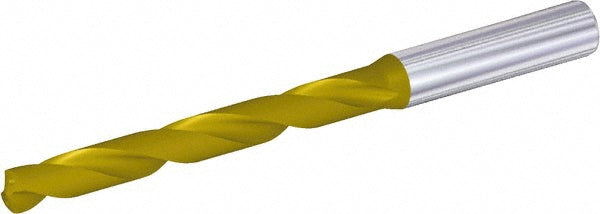

9/16" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4149341
MFR# 4149341
$446.54List $562.76
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
Flutes2
CoatingTiN
Description
The Kennametal 4149341 is a 9/16" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in9/16
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Drill point length0.0971
Flute by diameter ratio5xD
Flute length3.2677
Flute typeRegular Spiral
Maximum drilling depth2.4803
Number of flutes2
Overall length5.2362
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4688
Shank length1.8898
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
