Kennametal

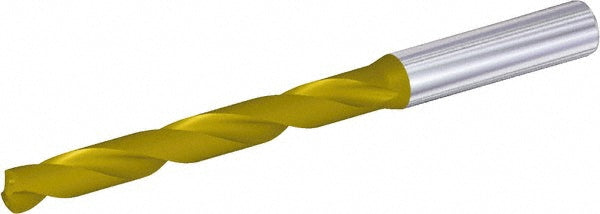

0.5906" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4149350
MFR# 4149350
$361.14List $463.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4149350 is a 0.5906" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.5906
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Drill point length0.1020
Flute by diameter ratio5xD
Flute length3.2677
Flute typeRegular Spiral
Maximum drilling depth2.4803
Number of flutes2
Overall length5.2362
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.1094
Shank length1.8898
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
