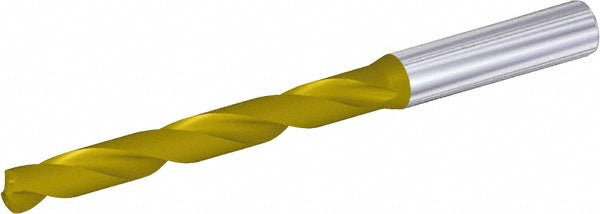

5/8" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4149361

Kennametal

5/8" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4149361

MFR# 4149361

$386.82List $496.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/8
Flutes2
CoatingTiN

Description

The Kennametal 4149361 is a 5/8" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.

Specifications

Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in5/8
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Drill point length0.1081
Flute by diameter ratio5xD
Flute length3.2677
Flute typeRegular Spiral
Maximum drilling depth2.4803
Number of flutes2
Overall length5.2362
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4219
Shank length1.8898
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
