Kennametal

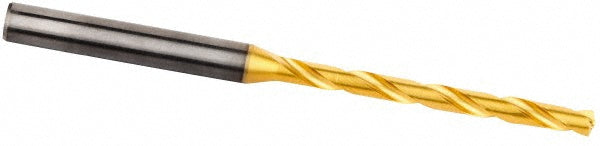

0.2047" Solid Carbide Drill Bit, Multilayer TiAlN, 140° point - Kennametal 4149629
MFR# 4149629Series B053A-CPG
$203.64List $256.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingMultilayer TiAlN
Description
The Kennametal 4149629 is a 0.2047" Solid Carbide drill bit with a Multilayer TiAlN finish, 140° point. Series B053A-CPG.
Specifications
Coating finishMultilayer TiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.012 to 0.000 mm
Drill bit size0.2047
Drill point angle degrees140
Drill point length0.0341
Flute length2.2047
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeKC7325
Maximum drilling depth1.8898
Overall length3-3/4
Point typeStandard
Shank diameter0.2362
Shank length1.4173
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
