Kennametal

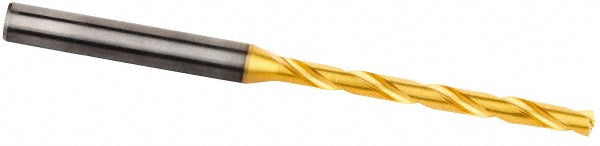

#3 Solid Carbide Drill Bit, Multilayer TiAlN, 140° point - Kennametal 4149632
MFR# 4149632Series B053A-CPG
$172.51List $221.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingMultilayer TiAlN
Description
The Kennametal 4149632 is a #3 Solid Carbide drill bit with a Multilayer TiAlN finish, 140° point. Series B053A-CPG.
Specifications
Coating finishMultilayer TiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.012 to 0.000 mm
Drill bit size0.2130
Drill bit size wire#3
Drill point angle degrees140
Drill point length0.0355
Flute length2.2047
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeKC7325
Maximum drilling depth1.8898
Overall length3-3/4
Point typeStandard
Shank diameter0.2362
Shank length1.4173
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
