Kennametal

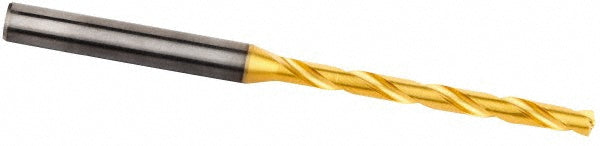

0.3189" Solid Carbide Drill Bit, Multilayer TiAlN, 140° point - Kennametal 4149669
MFR# 4149669Series B053A-CPG
$246.52List $316.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingMultilayer TiAlN
Description
The Kennametal 4149669 is a 0.3189" Solid Carbide drill bit with a Multilayer TiAlN finish, 140° point. Series B053A-CPG.
Specifications
Coating finishMultilayer TiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in; -0.015 to 0.000 mm
Drill bit size0.3189
Drill point angle degrees140
Drill point length0.0540
Flute length3.1496
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeKC7325
Maximum drilling depth2.6772
Overall length4-3/4
Point typeStandard
Shank diameter0.3937
Shank length1.5748
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
