Kennametal
0.3976" Solid Carbide Screw Machine Drill Bit, TiN, 140° point - Kennametal 4150177
MFR# 4150177Series B041A
$110.03List $141.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

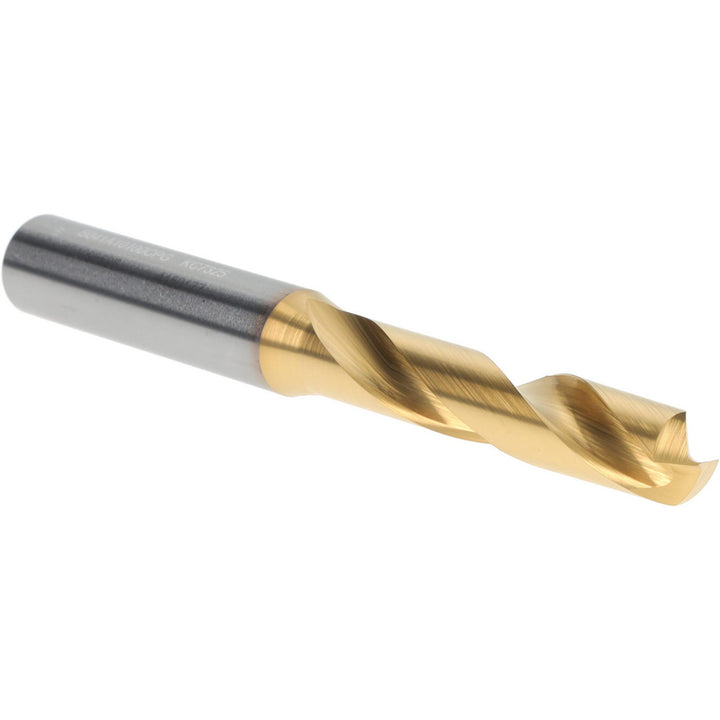

The Kennametal 4150177 is a 0.3976" Solid Carbide Screw Machine drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, high-temp alloy. Series B041A.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in; -0.018 to 0.000 mm
Drill bit size0.3976
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0681
Flute by diameter ratio3xD
Flute length2.1654
Flute typeRegular Spiral
Maximum drilling depth1.5748
Number of flutes2
Overall length4.0157
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Shank diameter0.4724
Shank length1.7717
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
StandardsDIN 6535; DIN 6537
Tool materialSolid Carbide
Web configurationTapered
