Kennametal
#3 Solid Carbide Stub Drill Bit, TiN, 140° point - Kennametal 4150217
MFR# 4150217Series B041A-CPG
$59.03List $75.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

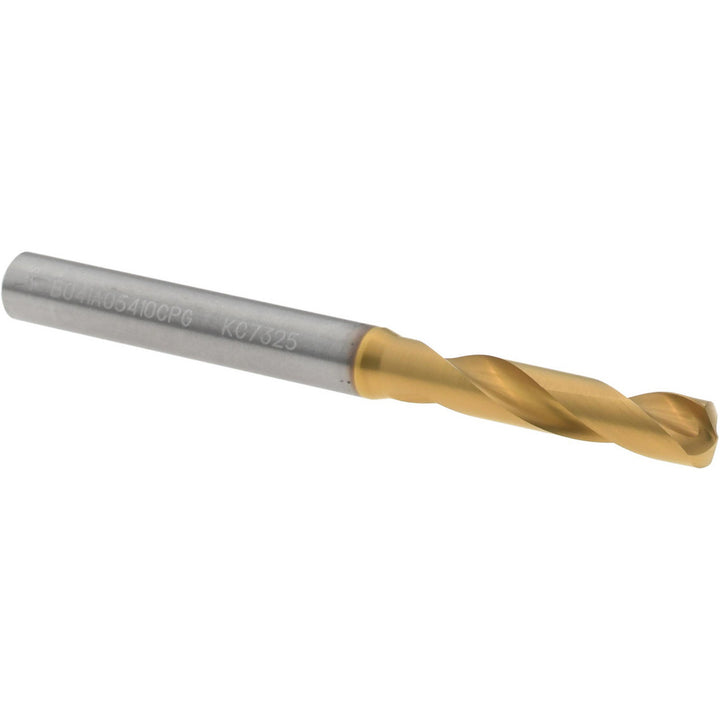

The Kennametal 4150217 is a #3 Solid Carbide Stub drill bit with a TiN finish, 140° point. Series B041A-CPG.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.012 to 0.000 mm
Drill bit size0.2130
Drill bit size range0.2000 to 0.2500
Drill bit size wire#3
Drill length typeStub
Drill point angle140
Drill point length0.0355
Flute by diameter ratio3xD
Flute length1.1024
Flute typeRegular Spiral
Maximum drilling depth0.7874
Number of flutes2
Overall length2.5984
Point typeStandard
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
