Kennametal

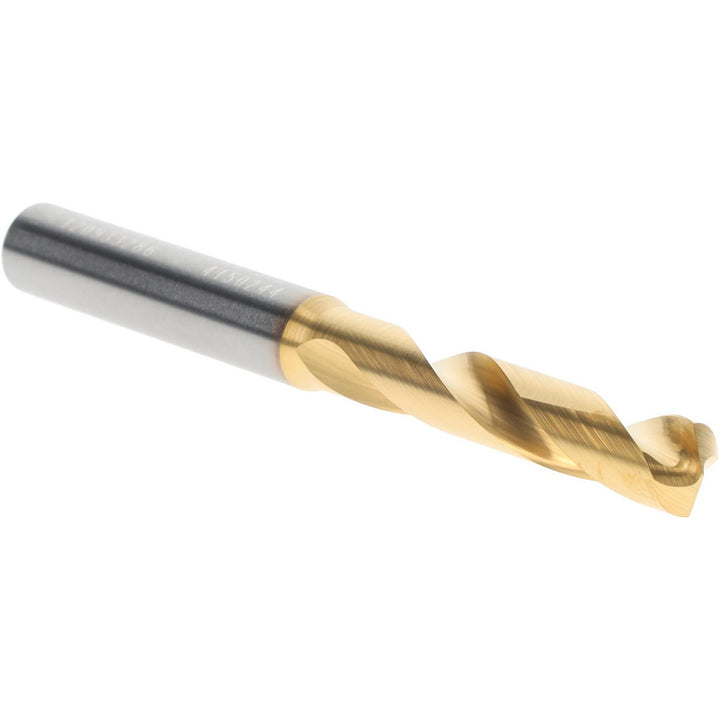

0.2874" Solid Carbide Stub Drill Bit, TiN, 140° point - Kennametal 4150244
MFR# 4150244Series B041A-CPG
$87.77List $110.61
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4150244 is a 0.2874" Solid Carbide Stub drill bit with a TiN finish, 140° point. Series B041A-CPG.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in; -0.015 to 0.000 mm
Drill bit size0.2874
Drill bit size range0.2500 to 0.3000
Drill length typeStub
Drill point angle140
Drill point length0.0485
Flute by diameter ratio3xD
Flute length1.6142
Flute typeRegular Spiral
Maximum drilling depth1.1417
Number of flutes2
Overall length3.1102
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
