Kennametal

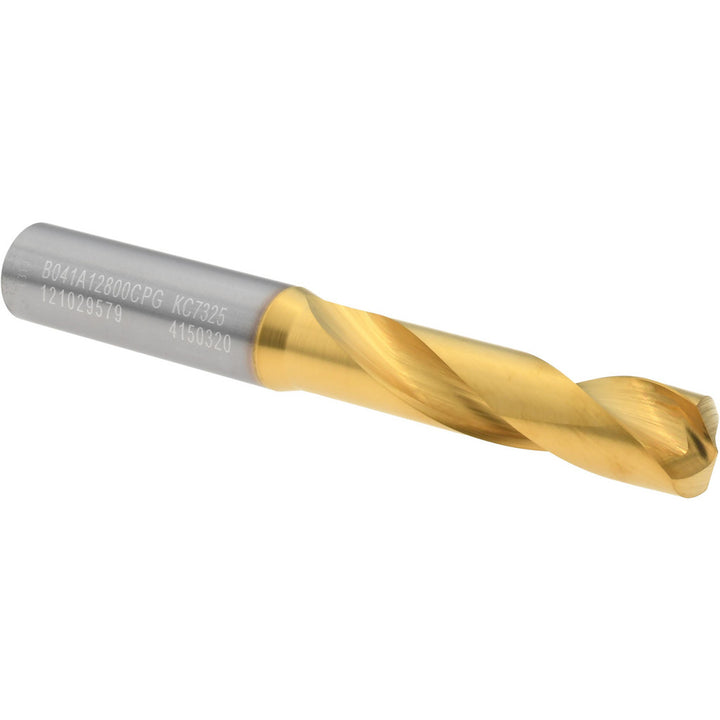

0.5039" Solid Carbide Stub Drill Bit, TiN, 140° point - Kennametal 4150320
MFR# 4150320Series B041A-CPG
$156.41List $200.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4150320 is a 0.5039" Solid Carbide Stub drill bit with a TiN finish, 140° point. Series B041A-CPG.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in; -0.018 to 0.000 mm
Drill bit size0.5039
Drill bit size range0.5000 to 0.6000
Drill length typeStub
Drill point angle140
Drill point length0.0867
Flute by diameter ratio3xD
Flute length2.3622
Flute typeRegular Spiral
Maximum drilling depth1.6929
Number of flutes2
Overall length4.2126
Point typeStandard
Shank diameter0.5512
Shank length1.7717
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
