Kennametal
21/32" Solid Carbide Stub Drill Bit, TiN, 140° point - Kennametal 4150367
MFR# 4150367Series B041A-CPG
$272.39List $349.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size21/32
Flutes2
CoatingTiN
Description

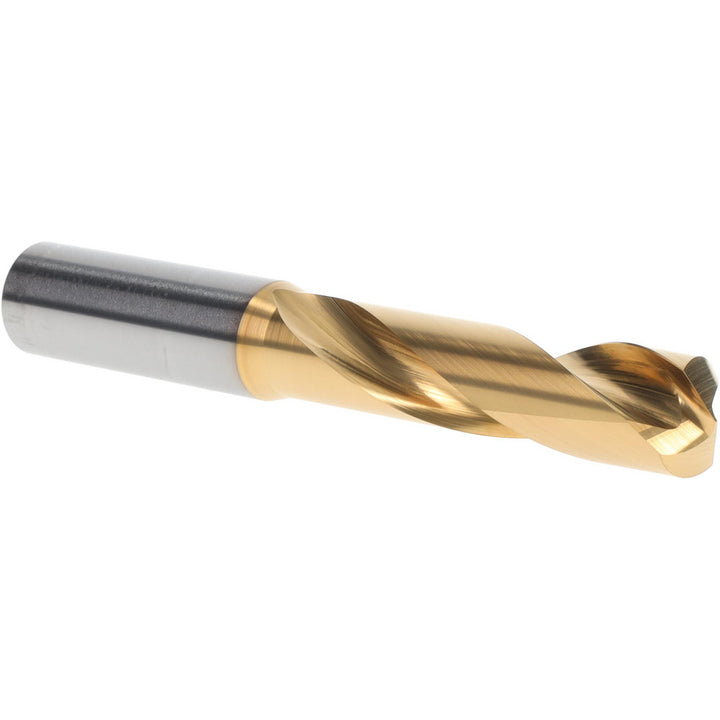

The Kennametal 4150367 is a 21/32" Solid Carbide Stub drill bit with a TiN finish, 140° point. Series B041A-CPG.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in; -0.018 to 0.000 mm
Drill bit size in21/32
Drill bit size range0.6000+
Drill length typeStub
Drill point angle140
Drill point length0.1137
Flute by diameter ratio3xD
Flute length2.8740
Flute typeRegular Spiral
Maximum drilling depth2.0079
Number of flutes2
Overall length4.8425
Point typeStandard
Shank diameter0.7087
Shank length1.8898
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
