Kennametal

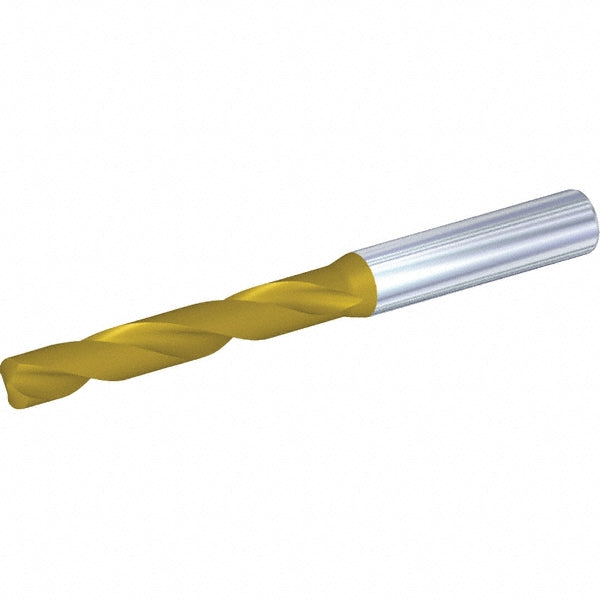

0.1496" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4150647
MFR# 4150647
$86.94List $109.56
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4150647 is a 0.1496" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1496
Drill bit size range0.1000 - 0.1500
Drill point angle degrees140
Drill point length0.0245
Flute by diameter ratio5xD
Flute length1.4173
Flute typeRegular Spiral
Maximum drilling depth1.1417
Number of flutes2
Overall length2.9134
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.9844
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
