Kennametal
0.1719" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 4150652
MFR# 4150652Series B977
$74.61List $95.55
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description

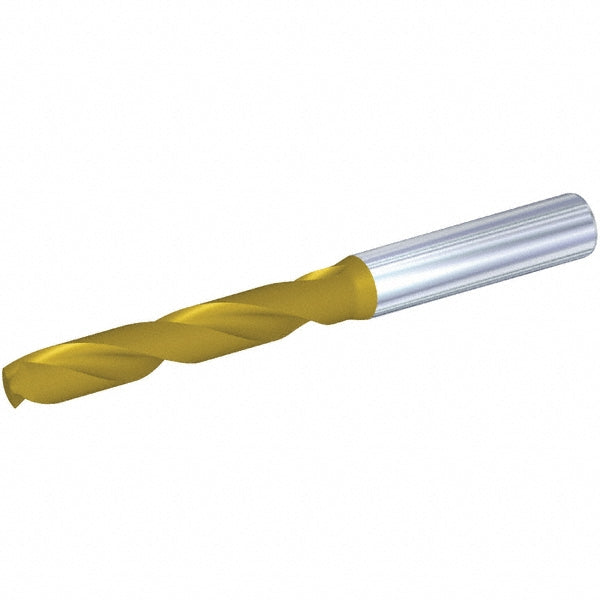

The Kennametal 4150652 is a 0.1719" Solid Carbide drill bit with a TiAlN finish, 140° point. Series B977.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit materialSolid Carbide
Drill bit size0.1719
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Drill point length (mm)0.72
Flute by diameter ratio5xD
Flute length1.4173
Flute typeRegular Spiral
Maximum drilling depth (mm)29.00
Number of flutes2
Overall length2.9134
Shank diameter (mm)6
Shank length (mm)36
Shank typeStraight
