Kennametal

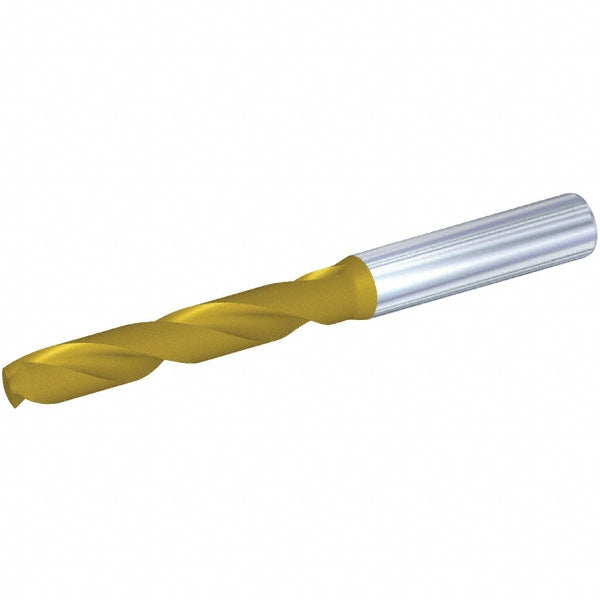

0.1850" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4150665
MFR# 4150665
$74.61List $95.55
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4150665 is a 0.1850" Solid Carbide drill bit with a TiN finish, 140° point.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit materialSolid Carbide
Drill bit size0.1850
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Drill point length (mm)0.78
Flute by diameter ratio6xD
Flute length1.4173
Flute typeRegular Spiral
Maximum drilling depth (mm)29.00
Number of flutes2
Overall length2.9134
Shank diameter (mm)6
Shank length (mm)36
Shank typeStraight
