Kennametal

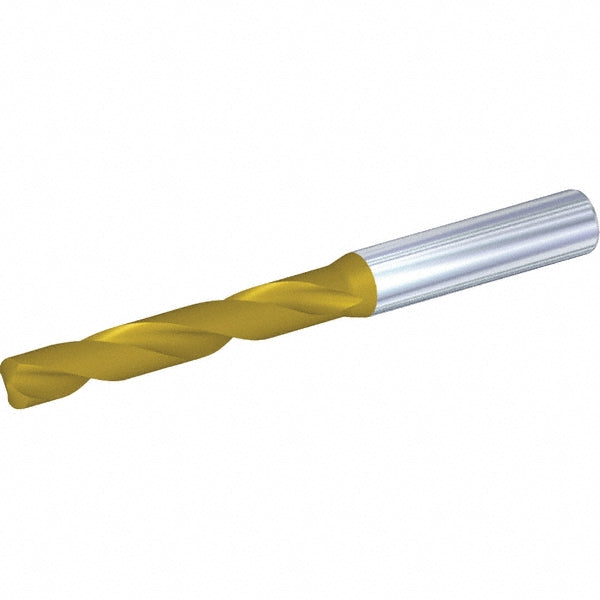

0.2874" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4150702
MFR# 4150702
$92.90List $119.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4150702 is a 0.2874" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2874
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)53.00
Flute typeRegular Spiral
Number of flutes2
Overall length3.5827
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.7031
Shank typeStraight
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
