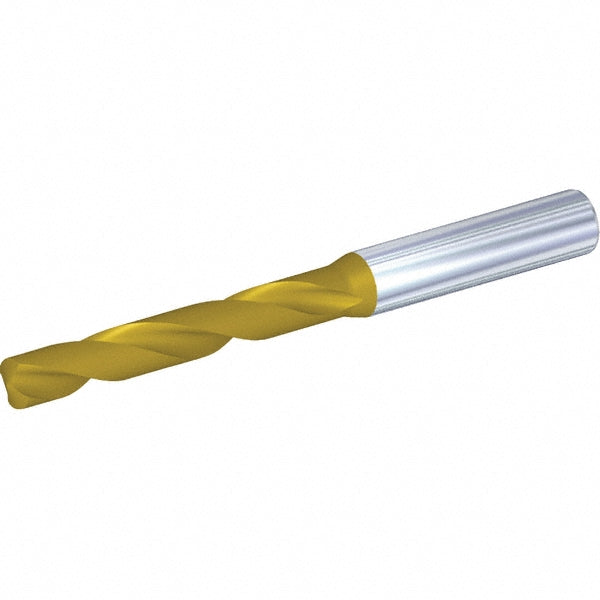

21/64" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4150715

Kennametal

21/64" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4150715

MFR# 4150715

$102.77List $131.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size21/64
Flutes2
CoatingTiN

Description

The Kennametal 4150715 is a 21/64" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in21/64
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Drill point length0.0557
Flute by diameter ratio5xD
Flute length2.4016
Flute typeRegular Spiral
Maximum drilling depth1.9291
Number of flutes2
Overall length4.0551
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.6250
Shank length1.5748
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
