Kennametal

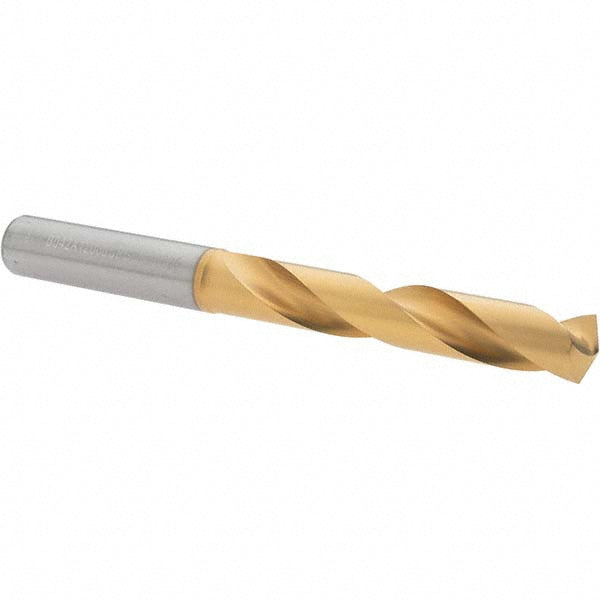

0.4724" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4150764
MFR# 4150764
$140.56List $180.01
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4150764 is a 0.4724" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.4724
Drill bit size range0.4000 - 0.5000
Drill point angle degrees140
Drill point length0.0811
Flute by diameter ratio5xD
Flute length2.7953
Flute typeRegular Spiral
Maximum drilling depth2.2047
Number of flutes2
Overall length4.6457
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3125
Shank length1.7717
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
