Kennametal

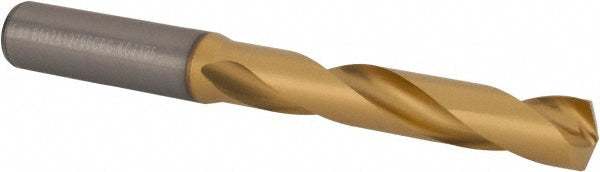

1/2" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4150772
MFR# 4150772
$199.24List $255.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
CoatingTiN
Description
The Kennametal 4150772 is a 1/2" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Flute length3.0315
Flute typeRegular Spiral
Maximum drilling depth1.2500
Overall length4.8819
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4219
Shank typeWhistle Notch
