Kennametal
0.1181" Solid Carbide Stub Drill Bit, TiN, 140° point - Kennametal 4151081
MFR# 4151081Series B051A-CPG
$78.79List $100.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

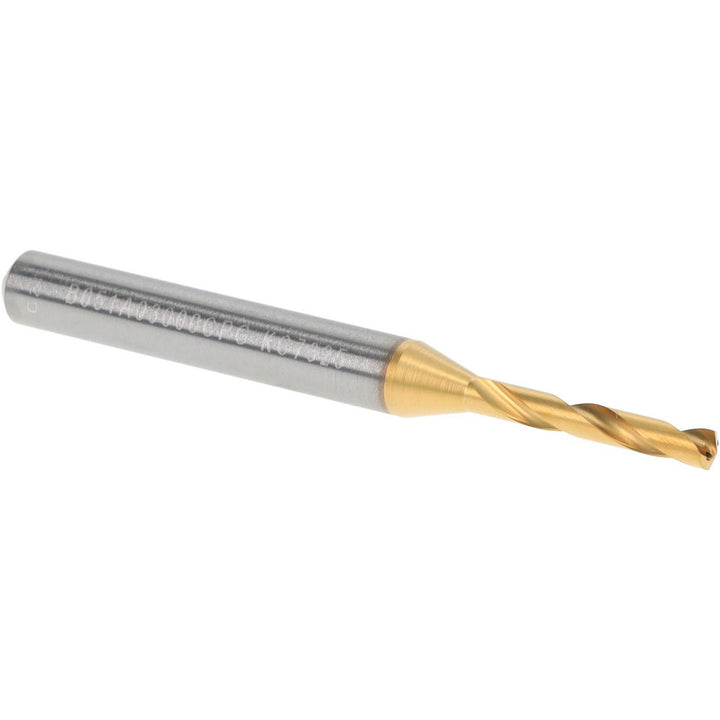

The Kennametal 4151081 is a 0.1181" Solid Carbide Stub drill bit with a TiN finish, 140° point. Series B051A-CPG.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0004 to 0.0000 in; -0.010 to 0.000 mm
Drill bit size0.1181
Drill bit size range0.1000 to 0.1500
Drill length typeStub
Drill point angle140
Drill point length0.0189
Flute by diameter ratio3xD
Flute length0.7874
Flute typeRegular Spiral
Maximum drilling depth0.5512
Number of flutes2
Overall length2.4409
Point typeStandard
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
