Kennametal

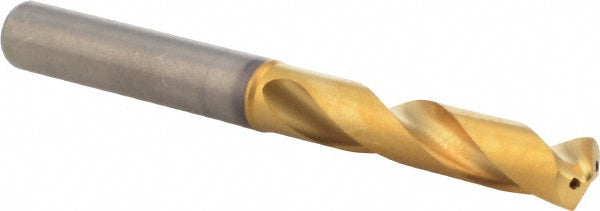

1/4" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4151152
MFR# 4151152Series B051A
$115.24List $147.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
CoatingTiN
Description
The Kennametal 4151152 is a 1/4" Solid Carbide drill bit with a TiN finish, 140° point. Series B051A.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit size in1/4
Drill bit size range0.2500 to 0.3000
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)34.00
Flute typeRegular Spiral
Maximum drilling depth (mm)24.00
Number of flutes2
Overall length3.1102
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
