Kennametal
19/64" Solid Carbide Stub Drill Bit, TiN, 140° point - Kennametal 4151169
MFR# 4151169Series B051A-CPG
$103.88List $133.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size19/64
Flutes2
CoatingTiN
Description

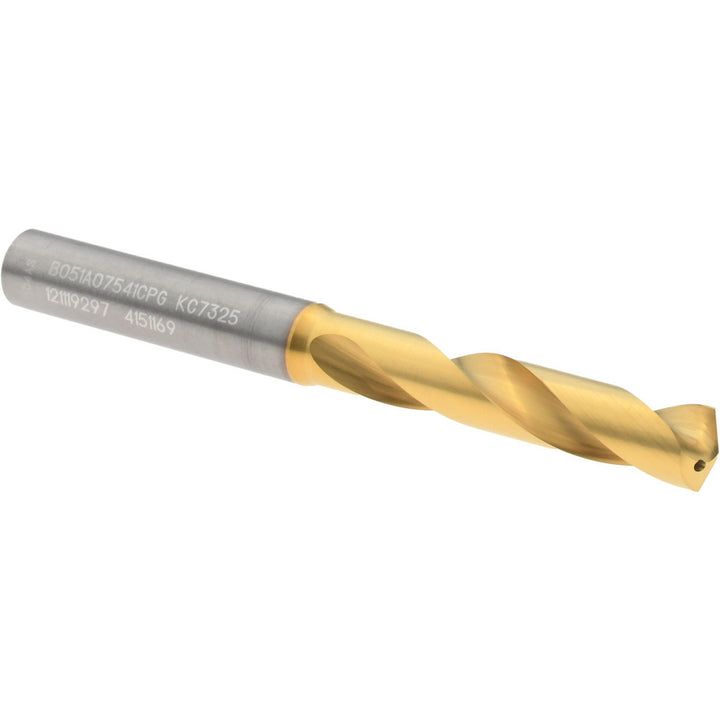

The Kennametal 4151169 is a 19/64" Solid Carbide Stub drill bit with a TiN finish, 140° point. Series B051A-CPG.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in; -0.015 to 0.000 mm
Drill bit size in19/64
Drill bit size range0.2500 to 0.3000
Drill length typeStub
Drill point angle140
Drill point length0.0502
Flute by diameter ratio3xD
Flute length1.6142
Flute typeRegular Spiral
Maximum drilling depth1.1417
Number of flutes2
Overall length3.1102
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
