Kennametal

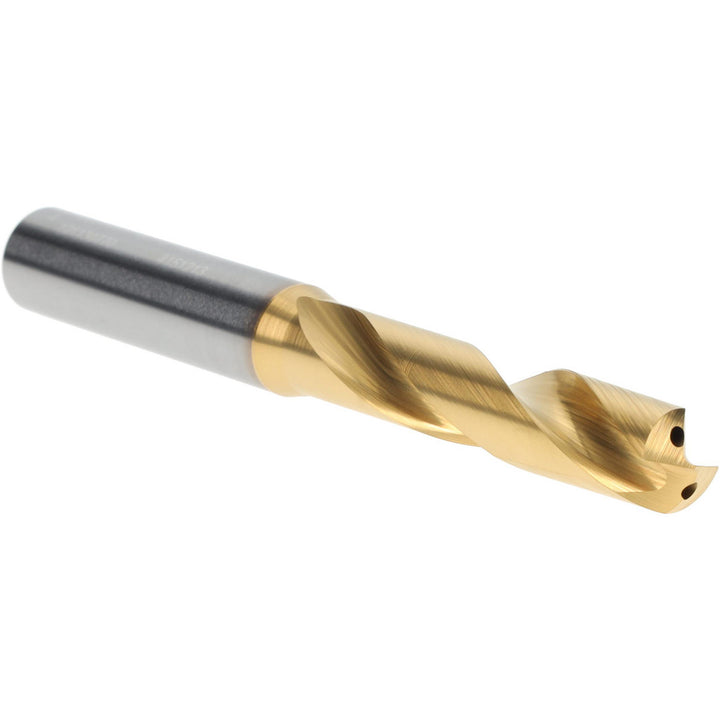

27/64" Solid Carbide Stub Drill Bit, TiN, 140° point - Kennametal 4151213
MFR# 4151213Series B051A-CPG
$162.61List $208.25
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size27/64
Flutes2
CoatingTiN
Description
The Kennametal 4151213 is a 27/64" Solid Carbide Stub drill bit with a TiN finish, 140° point. Series B051A-CPG.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in; -0.018 to 0.000 mm
Drill bit size in27/64
Drill bit size range0.4000 to 0.4500
Drill length typeStub
Drill point angle140
Drill point length0.0722
Flute by diameter ratio3xD
Flute length2.1654
Flute typeRegular Spiral
Maximum drilling depth1.5748
Number of flutes2
Overall length4.0157
Point typeStandard
Shank diameter0.4724
Shank length1.7717
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
