Kennametal

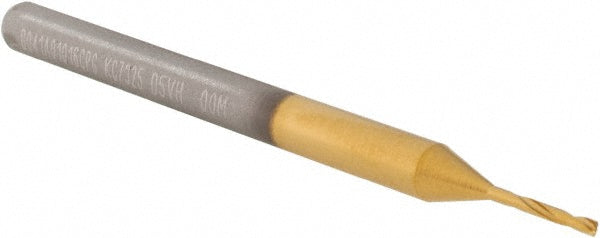

0.0400" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 4151624
MFR# 4151624Series B041A-CPG
$68.16List $85.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description
The Kennametal 4151624 is a 0.0400" Solid Carbide drill bit with a TiAlN finish, 140° point. Series B041A-CPG.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.014 to 0.000 mm
Drill bit size0.0400
Drill point angle140
Flute length0.2756
Flute typeSpiral
Maximum drilling depth (mm)5.00
Overall length2.2835
Point typeStandard
Shank diameter (mm)4.00
Shank length (mm)28.00
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
