Kennametal

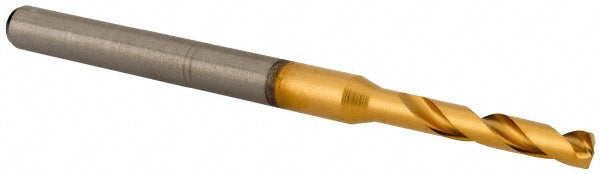

0.1102" Solid Carbide Stub Drill Bit, TiN, 140° point - Kennametal 4151657
MFR# 4151657Series B041A-CPG
$58.19List $74.53
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4151657 is a 0.1102" Solid Carbide Stub drill bit with a TiN finish, 140° point. Series B041A-CPG.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in; -0.014 to 0.000 mm
Drill bit size0.1102
Drill bit size range0.1000 to 0.1500
Drill length typeStub
Drill point angle140
Drill point length0.0177
Flute by diameter ratio3xD
Flute length0.6693
Flute typeRegular Spiral
Maximum drilling depth0.4724
Number of flutes2
Overall length2.2835
Point typeStandard
Shank diameter0.1575
Shank length1.1024
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
