Kennametal
0.0550" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 4151786
MFR# 4151786Series B042A-CPG
$73.74List $94.44
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description

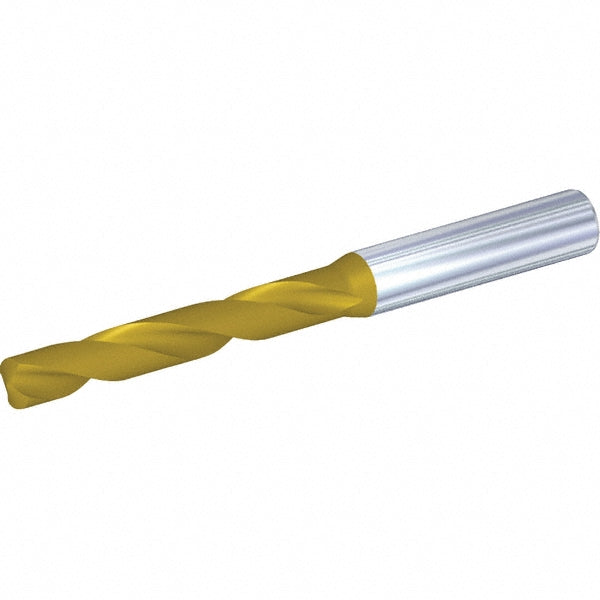

The Kennametal 4151786 is a 0.0550" Solid Carbide drill bit with a TiAlN finish, 140° point. Series B042A-CPG.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.014 to 0.000 mm
Drill bit size0.0550
Drill point angle140
Flute length0.3543
Flute typeSpiral
Maximum drilling depth (mm)6.00
Overall length2.2835
Point typeStandard
Shank diameter (mm)4.00
Shank length (mm)28.00
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
