Kennametal

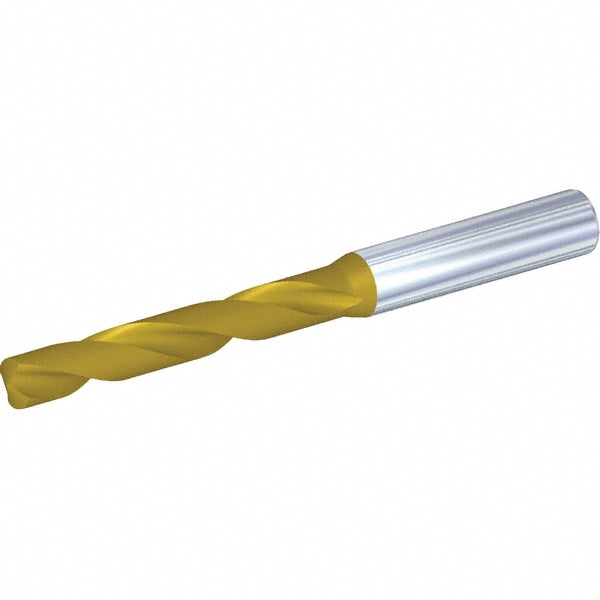

0.0709" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4151791
MFR# 4151791
$73.74List $94.44
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4151791 is a 0.0709" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.0709
Drill bit size range0.0500 - 0.1000
Drill point angle degrees140
Drill point length0.0110
Flute by diameter ratio5xD
Flute length0.4724
Flute typeRegular Spiral
Maximum drilling depth0.3543
Number of flutes2
Overall length2.2835
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.2656
Shank length1.1024
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
