Kennametal

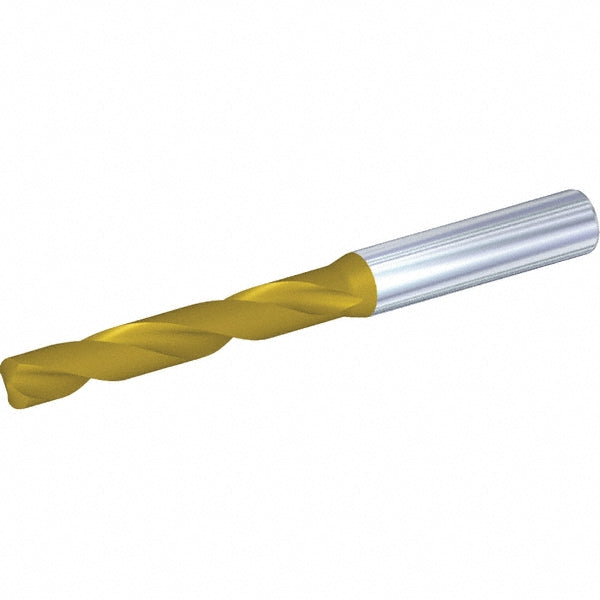

#38 Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4151803
MFR# 4151803
$73.64List $94.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4151803 is a #38 Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1015
Drill bit size range0.1000 - 0.1500
Drill bit size wire#38
Drill point angle degrees140
Drill point length0.0162
Flute by diameter ratio5xD
Flute length0.8661
Flute typeRegular Spiral
Maximum drilling depth0.6693
Number of flutes2
Overall length2.2835
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4063
Shank length1.1024
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
