Kennametal

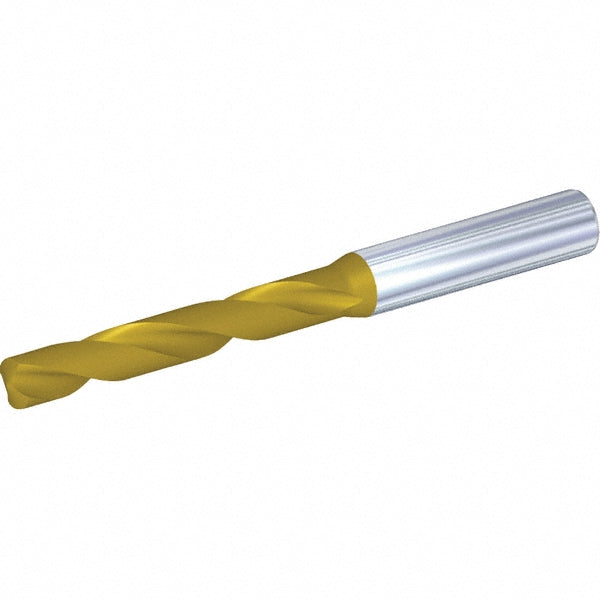

0.1063" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4151806
MFR# 4151806
$56.65List $71.39
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4151806 is a 0.1063" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1063
Drill bit size range0.1000 - 0.1500
Drill point angle degrees140
Drill point length0.0170
Flute by diameter ratio5xD
Flute length0.8661
Flute typeRegular Spiral
Maximum drilling depth0.6693
Number of flutes2
Overall length2.2835
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3906
Shank length1.1024
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
