Kennametal

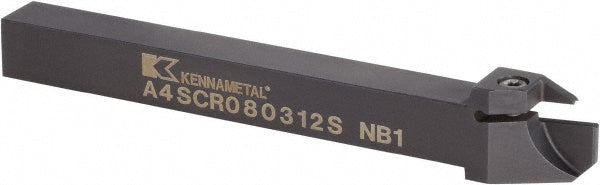

Indexable Cut-Off - Kennametal 4168856
MFR# 4168856Series A4
$212.42List $259.28
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 4168856 indexable cut-off. Series A4.
Specifications
Back of bar to cutting edge0.4643
Compatible insert size codeA4 G0200..; A4G0200M02P02B
Complete insert compatibilityA4G0200M02P02B
Coolant throughNo
Hand of holderRight
Head height0.8220
Head length1.1000
Height to shank top0.6250
Insert seat size2
Maximum depth of cut0.5709
Maximum insert width0.0787
Maximum workpiece diameter1.1024
Minimum insert width0.0787
Overall length in4-1/2
Shank height in1/2
Shank length3.3976
Shank width diameter in1/2
Toolholder styleA4SC
