Kennametal

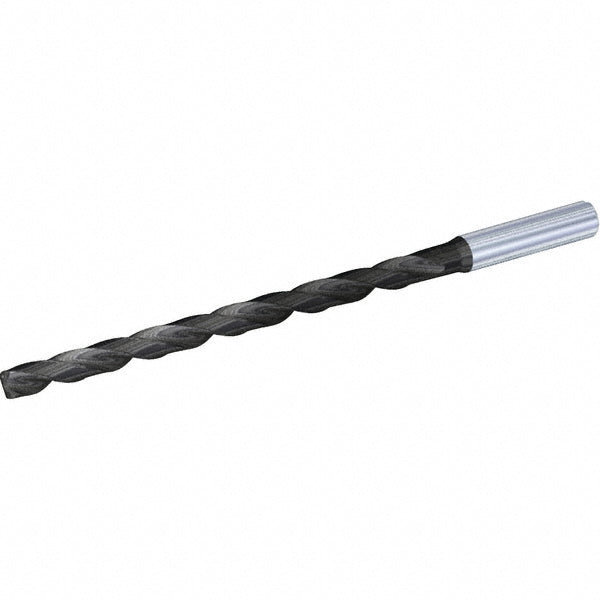

0.2008" Solid Carbide Drill Bit, Multilayer TiAlN, 135° point - Kennametal 4169249
MFR# 4169249Series B269-HP
$343.18List $440.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMultilayer TiAlN
Description
The Kennametal 4169249 is a 0.2008" Solid Carbide drill bit with a Multilayer TiAlN finish, 135° point. Series B269-HP.
Specifications
Coating finishMultilayer TiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm; 0.0002 to 0.0006 in
Drill bit size0.2008
Drill point angle135
Drill point length0.0377
Flute by diameter ratio12xD
Flute length3.2677
Flute typeSpiral
Maximum drilling depth2.7559
Number of flutes2
Overall length (mm)125.00
Point typeStandard
Shank diameter0.2362
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
