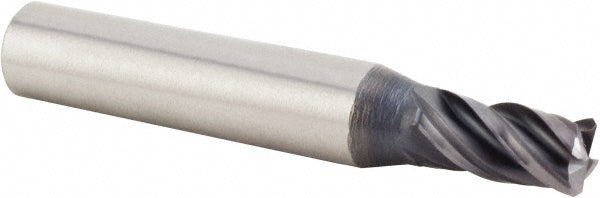

0.3125" 4-Flute Solid Carbide Single End Mill, AlTiN - Kennametal 4169808

Kennametal

0.3125" 4-Flute Solid Carbide Single End Mill, AlTiN - Kennametal 4169808

MFR# 4169808Series UEDE

$58.18List $74.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4169808 is a 0.3125 4-flute Solid Carbide (KC643M) single end mill with a AlTiN finish for longer tool life. 27/64 length of cut. Series UEDE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in27/64
Length typeStub
Material gradeKC643M
Mill diameter0.3125
Mill diameter frac in5/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.00035 in
Variable helixNo
Variable indexYes
