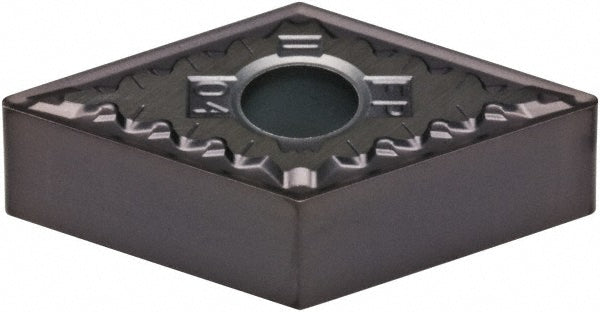

DNMG110404FP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4171826
MFR# 4171826ISO/ANSI# DNMG331FPSeries KENLOC
$32.69List $39.22
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4171826 is a DNMG110404FP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerFP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle55
Industry standard numberDNMG331FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG110404FP
Length range0.7000 - 10.0000
Manufacturers catalog number4171826
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
