Kennametal

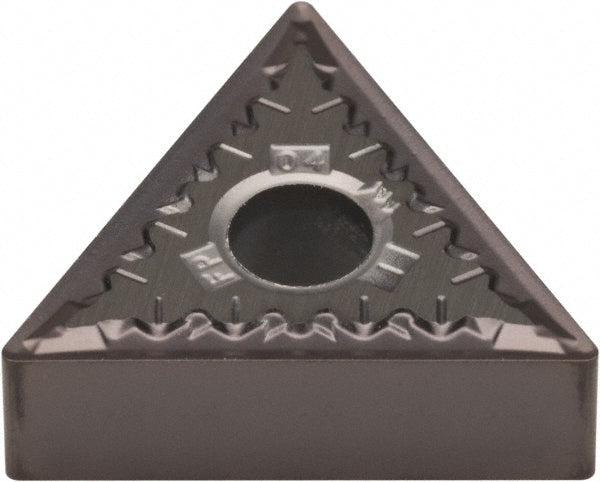

TNMG220404FP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4171841
MFR# 4171841ISO/ANSI# TNMG431FPSeries KENLOC
$27.43List $33.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4171841 is a TNMG220404FP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerFP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle60
Industry standard numberTNMG431FP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220404FP
Length range0.7000 - 10.0000
Manufacturers catalog number4171841
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
