Kennametal

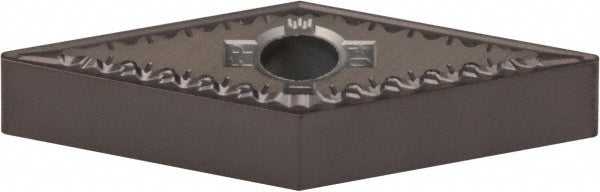

VNMG160408FP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4171844
MFR# 4171844ISO/ANSI# VNMG332FPSeries KENLOC
$31.29List $38.19
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4171844 is a VNMG160408FP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerFP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNMG332FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408FP
Length range0.7000 - 10.0000
Manufacturers catalog number4171844
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
