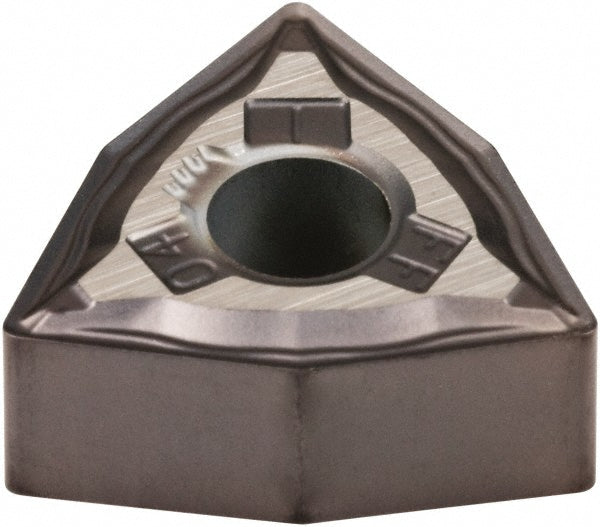

WNMG060404FF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4171845
MFR# 4171845ISO/ANSI# WNMG331FFSeries KENLOC
$21.90List $26.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4171845 is a WNMG060404FF carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerFF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle80
Industry standard numberWNMG331FF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5130
Insert materialCarbide
Insert shapeTrigon
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060404FF
Length range0.5000 - 0.6000
Manufacturers catalog number4171845
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1708
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.513
Wiper edgeNo
