Kennametal

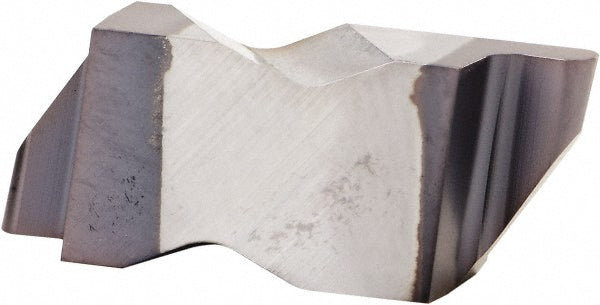

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175902
MFR# 4175902Series Top Notch
$42.12List $50.52
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4175902 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0311
Cutting height0.2190
Cutting width0.0622
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2031
Insert styleNR
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Msc manufacturer numberNR2031R/L
Multi use toolNo
Overall length0.5117
Overall width0.151
