Kennametal
Solid Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175904
MFR# 4175904Series Top Notch
$42.12List $50.52
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialSolid Carbide
CoatingAlTiN
Description

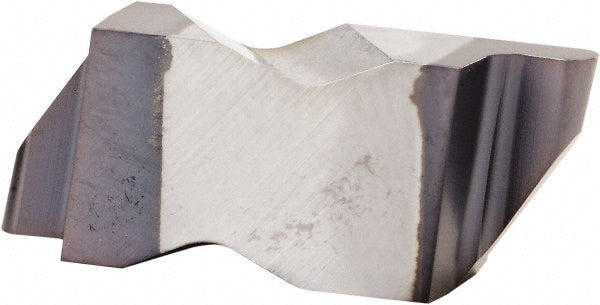

The Kennametal 4175904 is a solid carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0626
Cutting height0.2190
Cutting width0.1252
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size2
Insert size2062
Insert styleNR
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Msc manufacturer numberNR2062R/L
Multi use toolNo
Overall length0.5083
Overall width0.1510
Single or double endDouble
