Kennametal

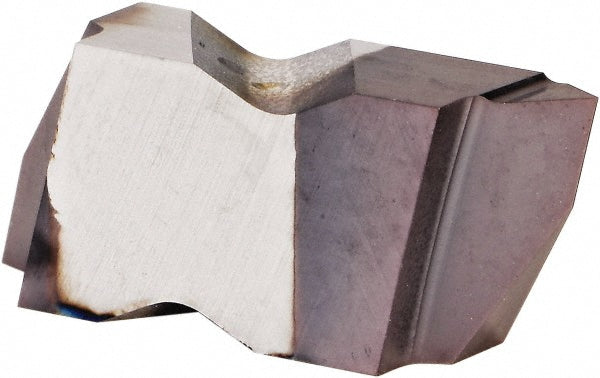

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175936
MFR# 4175936Series Top Notch
$32.94List $40.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4175936 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0031
External pitch0.60-1.75 mm; 14-44 TPI
Finish coatingAlTiN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleNTK
Internal pitch1.00 to 2.00 mm; 12 to 24 TPI
Manufacturer gradeKCU10
Thickness0.219
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.1098
