Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175937
MFR# 4175937Series Top Notch
$32.00List $39.06
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

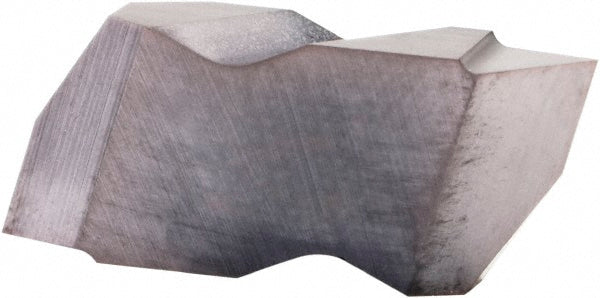

The Kennametal 4175937 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0040
External pitch0.70-3.0 mm; 8-36 TPI
Finish coatingAlTiN
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size2
Insert styleNTP
Internal pitch1.25 to 3.50 mm; 7 to 20 TPI
Manufacturer gradeKCU10
Thickness0.219
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
