Kennametal

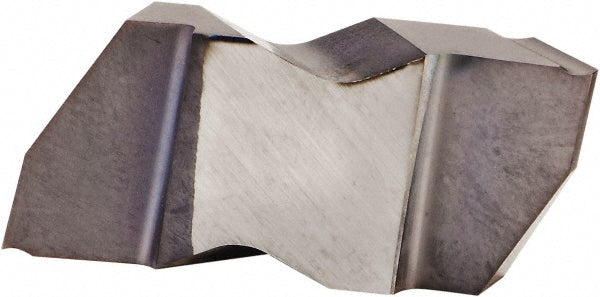

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175946
MFR# 4175946Series Top Notch
$36.01List $43.96
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4175946 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0035
Cutting height0.3440
Cutting width0.1902
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3002
Insert styleNP
Lead angle45
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2000
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Msc manufacturer numberNP3002RK
Multi use toolNo
Overall width0.196
RakePositive
