Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175949
MFR# 4175949Series Top Notch
$35.18List $42.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

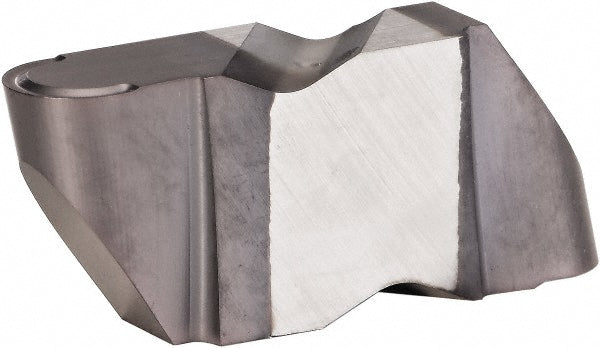

The Kennametal 4175949 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0311
Cutting height0.3440
Cutting width0.0622
Full radiusYes
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3031
Insert styleNR
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0941
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
Overall length0.8841
Overall width0.196
