Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176025
MFR# 4176025Series Top Notch
$41.20List $49.42
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

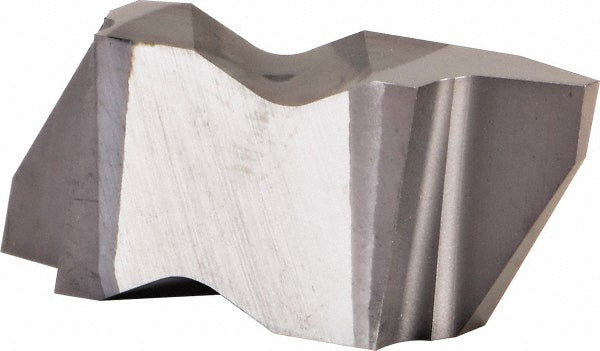

The Kennametal 4176025 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050
Finish coatingAlTiN
Included angle29
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNA
Internal pitch8 TPI
Manufacturer gradeKCU10
Thickness0.1949
Thread standardAcme
Thread typeInternal; External
Tip to top of insert0.1492
Width of cutting tip0.0411
