Kennametal

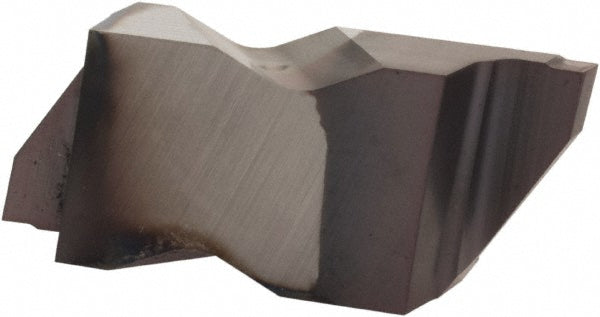

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176041
MFR# 4176041Series Top Notch
$35.63List $43.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4176041 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0622
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert materialCarbide
Insert size3062
Insert styleNG
Lead angle0
Manufacturer gradeKCU10
Maximum depth of cut0.0941
Maximum depth of cut range0.0750 to 0.1000
Measurement typeDecimal Inch
Msc manufacturer numberNG3062R/LK
Multi use toolNo
RakeNeutral
Rake angle0
