Kennametal
Solid Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176044
MFR# 4176044Series Top Notch
$35.63List $43.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialSolid Carbide
CoatingAlTiN
Description

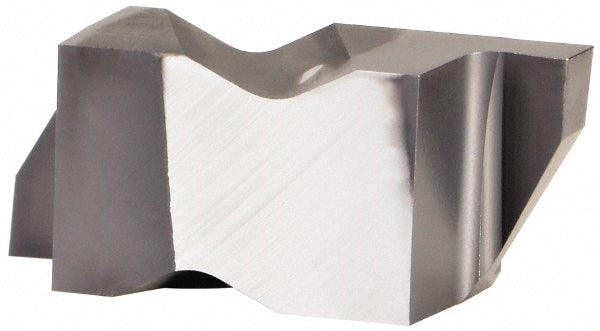

The Kennametal 4176044 is a solid carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0720
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size3072
Insert styleNG
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0941
Maximum depth of cut range0.0750 to 0.1000
Msc manufacturer numberNG3072R/L
Multi use toolNo
Overall width0.1960
Single or double endDouble
