Kennametal

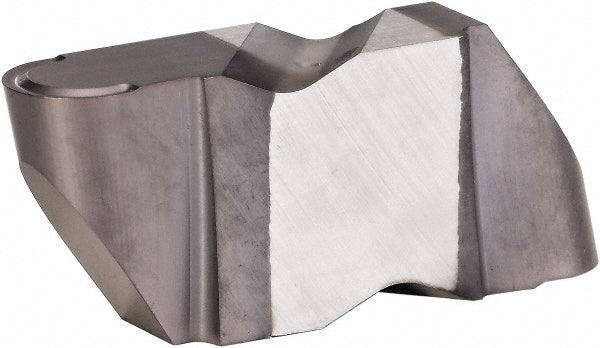

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176109
MFR# 4176109Series Top Notch
$55.10List $67.25
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4176109 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0941
Cutting height0.4530
Cutting width0.1882
Full radiusYes
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert size4094
Insert styleNR
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Msc manufacturer numberNR4094R/LK
Multi use toolNo
Overall length1.11
Overall width0.256
