Kennametal

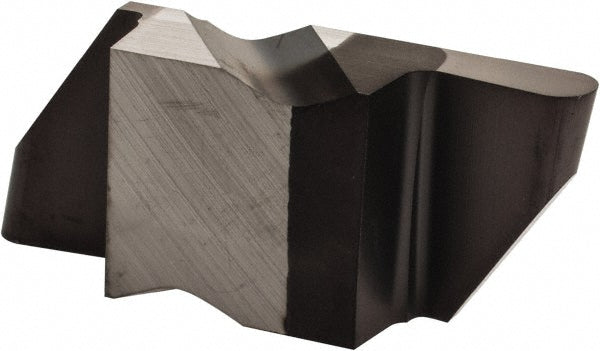

Solid Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176116
MFR# 4176116Series Top Notch
$47.02List $57.40
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 4176116 is a solid carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0626
Cutting height0.4530
Cutting width0.1252
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size4
Insert size4062
Insert styleNRD
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Msc manufacturer numberNRD4062R/L
Multi use toolNo
Overall length1.1175
Overall width0.2560
Single or double endDouble
