Kennametal

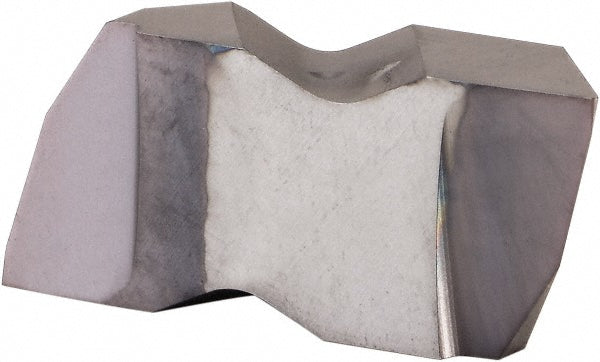

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176191
MFR# 4176191Series Top Notch
$42.88List $52.35
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4176191 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0100
Finish coatingAlTiN
Insert handRight Hand
Insert materialCarbide
Insert size4
Insert styleNTB
Internal pitch4-6 TPI
Manufacturer gradeKCU10
Thickness0.2551
Thread standardAmerican Buttress
Thread typeInternal; External
Tip to top of insert0.0160
