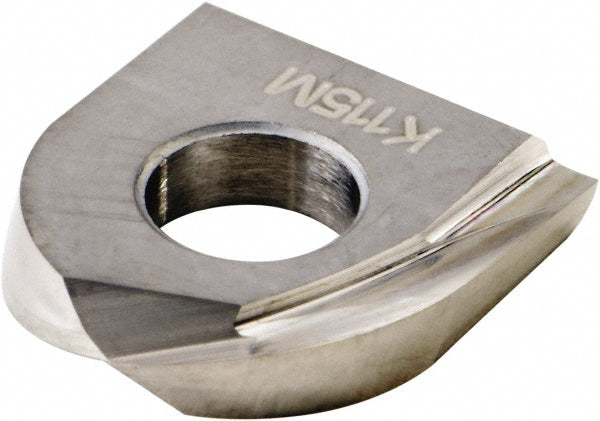

KDMB1000M0ERLD Solid Carbide Insert, Grade K115M - Kennametal 4177656
MFR# 4177656ISO/ANSI# KDMB1000M0ERLDCat# KDMB1000M0ERLDSeries KDMB
$168.80List $202.45
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeBall Nose
GradeK115M
MaterialSolid Carbide
Description
The Kennametal 4177656 is a KDMB1000M0ERLD solid carbide indexable insert, grade K115M. Suited for cast iron, non-ferrous metal, superalloys & titanium.
Specifications
Ansi codeKDMB1000M0ERLD
Chip breakerLD
Coating processUncoated
Corner radius in1/2
Cutter series compatibilityKDMB
Cutting edge styleHoned
Hole diameter0.2362
Included angle degree360
Inscribed circle in1
Inscribed circle range1.0000+
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size10
Insert size code1000
Insert styleKDMB
Iso codeKDMB1000M0ERLD
Length in1
Length range1.0000+
Manufacturers catalog numberKDMB1000M0ERLD
Manufacturer gradeK115M
Material applicationCast Iron; Non-Ferrous Metal; Superalloys & Titanium
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges1
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width in1
