Kennametal

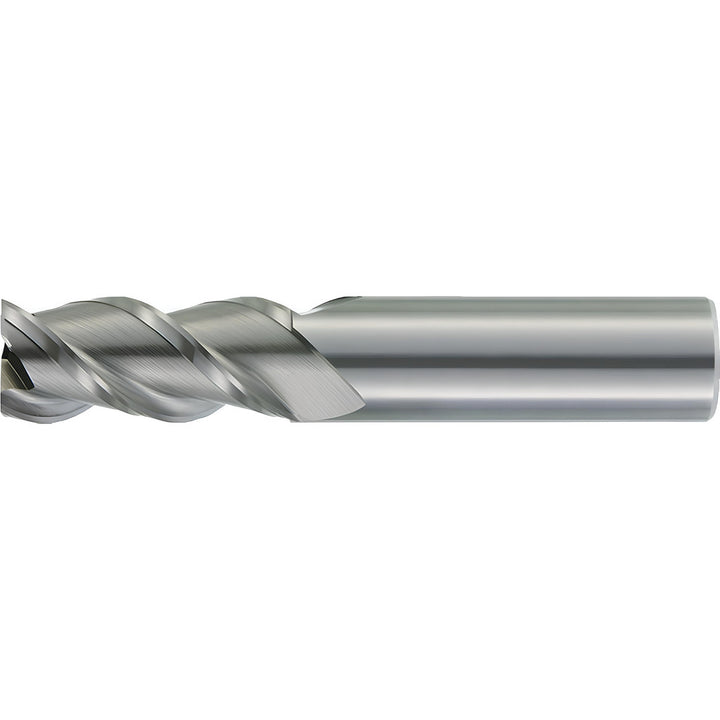

1/2" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 5052001

MFR# 5052001Cat# 4K6313055BSeries AADE

$158.92List $203.82 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 5052001 is a 1/2 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-1/2 length of cut, 4 overall length. Series AADE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in1-1/2

Length typeStandard

Manufacturers catalog number4K6313055B

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in1/2

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes3

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/2

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
