Kennametal

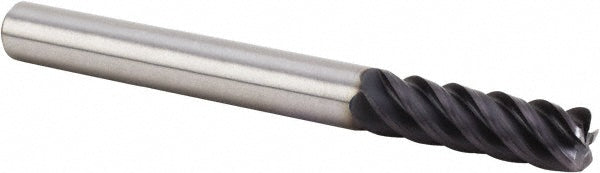

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5059703

MFR# 5059703Series UGDE

$422.81List $542.28 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5059703 is a 5/8 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-7/8 length of cut, 5 overall length. Series UGDE.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC-HSK Form A

Helix styleHigh

Length of cut in1-7/8

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes5

Overall length in5

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in1-7/8

Shank diameter in5/8

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
